Dryer
Description
The dryer uses heat energy to reduce the moisture content of materials. By heating dryer machines, moisture of materials can vaporize and escape. In this way, we can get solid materials in specified humidity ratio. The purpose of drying is to use material or for further processing. The main components of dryer include drying cylinder, dust removal system, selection by winnowing system and hot-blast furnace. The dryer machine is utilized to dry materials until the moisture content is appropriate. Dried materials can be used to make wood pellet fuel or particle board. It is suitable for drying materials like crushed woods, shavings, sawdust, straw, etc.
Advantages
- Dryers adopt direct heating and drying type. They can be divided into single-channel dryers and three- channel dryers. The whole dryer machine is processed by high temperature and aseptic technology. The shell of pipe has special heat preservation treatment.

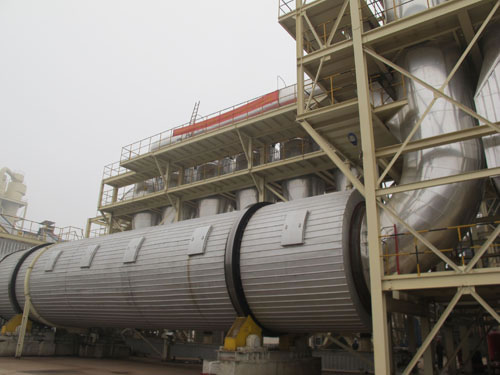

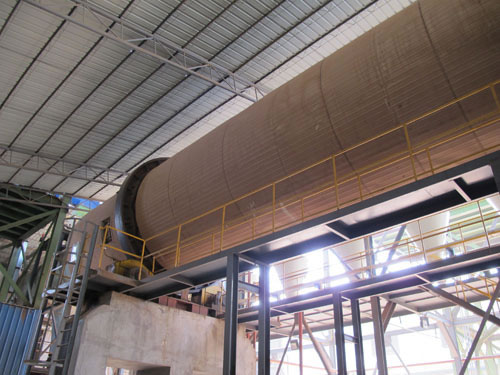

- The external barrel of the dryer is reinforced by flanges to assure concentricity. The intensive support of internal barrel can prevent the internal barrel from transforming and assure the balanced operation.
- Dryer equipment uses idler wheel to drive and frequency control.
- It is safe and reliable for using sparkproof warning device inside of pipeline.
- The degree of mechanization of dryer is high. It has high capacity with low energy cost.
- Dryer machines can be operated easily with low cost. Materials can be dried uniformly.
- We have price advantage. The needed steels of dryer machines are purchased in China and the machines are made in China, which reduces the production cost.
- Dryers are of high quality. Key components use international brands, such as electrical machines, bearings, valves, control elements, pumps, hydraulic components and sensors. In addition, special steels are imported from foreign countries.
After-sale Service
According to the requirements of the customers, we can send our engineers and translators for on-the-spot service. They can help with installation and adjustment of dryer machine until the dryer operates safely and stably. Meanwhile, we will train users to maximize the capacity on the condition of stable operation of dryers.
Principle
- Dryers is working under 450℃. The time of drying depends on output, initial moisture content of shavings, shapes of shavings and types of wood. It normally needs 20-30 minutes.
- Relying on the combined effect of air and dryer machine, shavings inside of the drum flow horizontally for drying. As moisture content of shavings is reduced, so does the temperature of thermal medium. Therefore, this kind of drying equipment has good security. Air has more apparent effect on small and thin shavings and they flow through the drum at faster speed. Although shavings are in different shapes, the final moisture content is almost the same.

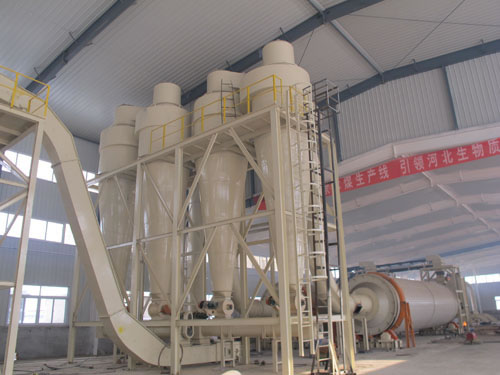

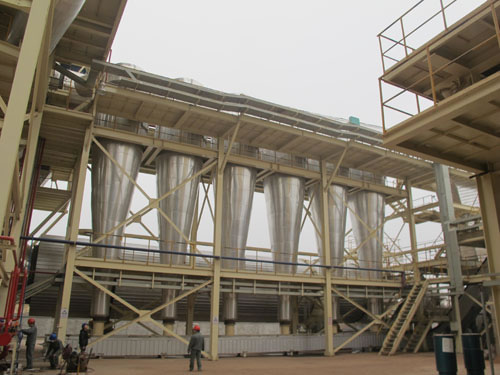

- Dried shavings are discharged at the back end of the dryer and are pushed into the cyclone for separation. Tail air contents fine materials via the drying fan goes into efficient cyclone for further dust removal. Fine materials, as fuel, are transported to hot-blast furnace by conveyors.
- Tail air discharged by drying system can be partly recycled. It will greatly increase the thermal efficiency of drying system.
Product Parameters
| Type | BPP-FD 50 | BPP-FD 100 | BPP-FD 150 | BPP-DD 200 | BPP-DD 300 | BPP-DD 400 | BPP-DD 500 | BPP-DD 600 |
| Capacity t/h (b.d) | 0.5 | 1 | 1.5 | 2 | 3 | 4 | 5 | 6 |
| Type | BPP-DD 800 | BPP-DD 1000 | BPP-DD 1200 | BPP-DD 1400 | BPP-DD 1600 | BPP-DD 1800 | BPP-DD 2000 | BPP-DD 2300 |
| Capacity t/h (b.d) | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 23 |
| Type | BPP-DD 2500 | BPP-DD 3000 | BPP-DD 3500 | BPP-DD 4000 | BPP-DD 4500 | BPP-DD 5000 | BPP-DD 5500 | BPP-DD 6000 |
| Capacity t/h (b.d) | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 |
Packing and Transportation
Dryers are nude packing and are transported by sea.
