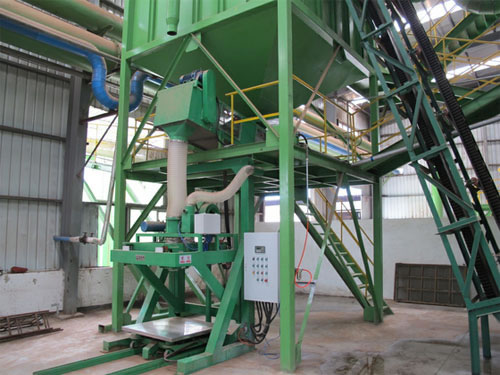

Jumbo Bag Packing Machine
Description
Big bag packing machines are suitable for large-capacity packages of biomass pellet fuels. Jumbo bag packing machines are easy to use and can be set in narrow space. Many types are available to be customized. The function of system recovery is installed. When power is off, information can be protected. Parts of big bag packing machines contacting materials adopt stainless steels, which are easy to clean.
Principle of Jumbo Bag Packing Machine
- Materials are transported to jumbo bags directly by the feed screw.
- Big bag packing machines adopt frequency control device. High speed assures efficiency, while low speed assures precision.
- When weights of materials reach set value, feeding is stopped. The bag-clamping device is open and jumbo bags are taken away by the forklift for secondary packaging.
Features of Vibratory Screen
- Feeding of big bag packing machines adopts gravity flow type. Three levels flow control can ensure the accurate measurement.
- The weighing system of the jumbo bag packing machine is controlled by PLC program. According to users' requirements, communication interface can be set for online network. Network-based monitoring and management in real time can be carried out.
- Based on environmental philosophy, big bag packing machines adopt high-efficiency dust removal devices to avoid on-the-spot dust pollution.
- Guided by humanization design principle, the bag-clamping device uses liftable structure. This structure offers convenience to bagging and clamping bags. Jumbo bag packing machines can finish the whole filling process and bag releasing automatically.
- Weighing control instruments of big bag packing machines use the full board digital adjustable parameter setting. It has the functions of total weight display, automatic peeling, automatic zero calibration, automatic fall correction, exceed tolerance alarm, fault self-diagnosis, etc.
Product Parameters
| Packing Specification | 500-1000kg/ bag |
| ±Tolerance | 0.2％-0.5％ |
| Capacity | 3t/h, 5t/h, 8t/h, 10t/h, 12t/h, 15t/h, 20t/h |
Payment, Packing and Transportation
We offer T/T and L/C payment.
Big bag packing machines are packaged with vacuum waterproof polyethylene plastic films, and wooden cases for external use. We adopt ocean, land, air transportation or joint sea-and-rail transportation.
According to materials with different properties, the Panda Pellet Company has developed different packing machines, like big bag packing machines, briquette shrinking packing machines, etc. They are sold well all over the world and are exported to Eastern Europe, Southeast Asia and South America.

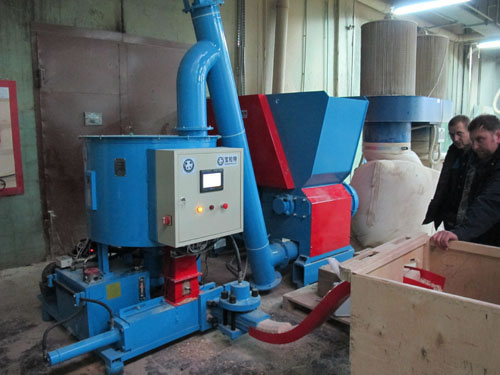

- BPP-BP 125-Russian Briquette Production LineWaste woods from furniture factories are grinded by shredders and then are transported to briquette press by screw conveyors for compression. Biomass briquettes are mainly used as fuels for heating boilers, dryers and other equipment...
