Annual Capacity 20,000t-Hebei Biomass Pellets Production Line

Description
Wood pellet production line in Fengning Manchu autonomous county has formally put into production in recent days. Its annual production is 20,000 tons. This is the first pellet line in China. Complete production equipment is offered by Panda Pellet Company. The pellet making line is invested by Fengning Hongsen Wood industry with RMB 235,000,000.
The project makes full use of waste woods, straw and other flammable biomass materials to produce wood pellets. Pellets can replace coals as fuels. In addition, they can also be used to solve the problems of safety and pollution caused by burning straw.
The first wood pellet production line in China began in June, 2008. The project is built in two stages. The first-stage project is invested RMB 85,000,000 and can produce 50,000 tons wood pellets annually. The second stage is built for producing 200,000 tons every year. After two stages fully finish their capacity, gross annual value can reach RMB 360,000,000. Total benefits are RMB 187,000,000 and total revenue is RMB 52,000,000.
The first-stage wood pellet production line produces 20,000 tons annually. Its operation fill in gaps in wood pellets production in China. Wood pellets are biomass forming fuels. They are energy conservation and environment protection with nearly zero sulfur dioxide emission. So they are up to the emission reduction of our country. Wood pellets production can make full use of straw. We can go to countries and barter wood pellets for their straw.

Features
The wood pellet production line is adapted from old artificial board production line. Its operation can not only make full use of waste woods produced by making artificial boards but also crop wastes. Therefore, the behaviors of burning straws can be reduced, which is helpful to protect local environment.

Production Process of Wood Pellet Production Line

• Coarse Shredding. Brush wood, straw, and other raw materials are crushed by shredders.
• Fine Shredding. Chips are transported to three rotors hammer flakers by conveyors and are shredded to qualified sizes. The stone remover and the de-ironing separator can be used to firstly get rid of the impurities in the materials.

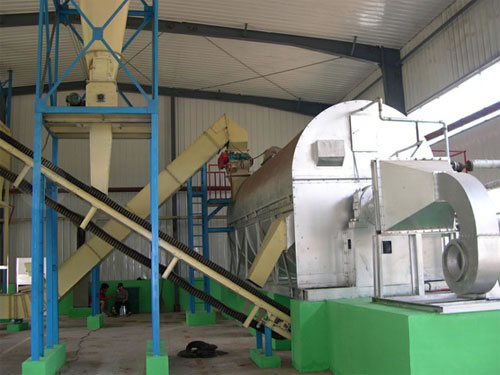

• Drying. Materials are conveyed to the drying roller by using fans for drying. After drying, the moisture content of the materials is about 12%. Materials are needed to eliminate dust for the second time so that they can reach the indicators of national dust concentration.

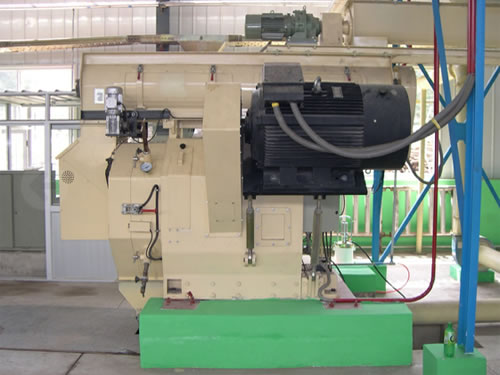

• Pelleting. Materials after being dried are transported to the stirrer for proper moisture and steam. Then, materials are conveyed to the pellet mills. By high temperature extrusion, the materials come out of circular mould in the form of pellets. After being cooled and screened, pellets in qualified sizes fall into conveyers while unqualified pellets need to be pelletized.
• Packing. Pellets passing screening are conveyed to packing machines by belt conveyors.

Technical Parameters Wood Pellet Production Line

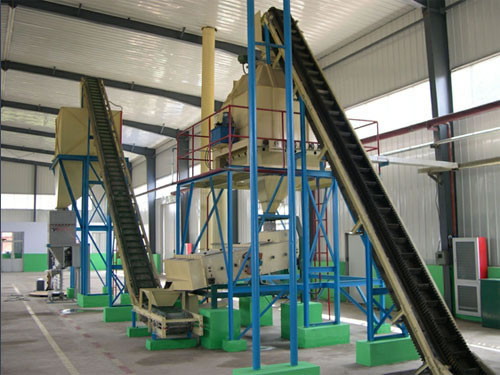

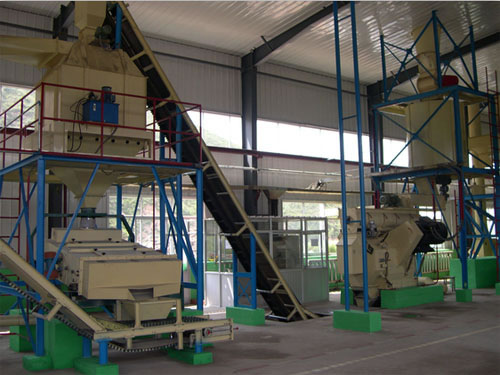

Equipment for Wood Pellet Production Line
The annual capacity of Hebei biomass pellet production is 20,000t. Equipment needed in production involves drum chippers, three rotors hammer flakers, hot-blast furnaces, dryers, conveyors, silos, dust removal equipment, pellet mills, coolers, screeners and packing machines.

Panda Pellet Company undertakes the complete large-scale engineering design of wood pellet production line in China and abroad. It adopts advanced level of foreign countries, learns from foreign countries and forms unique technological process. Its biomass pellet production line has strong adaptability. All kinds of forestry and agricultural residues and household wastes can be used to make pellet fuels.
