Annual Capacity 50,000t-Jiangxi Wood Pellets Production Line

Description
The annual capacity of Jiangxi wood pellets production line is 50,000t. Its raw materials can be waste woods caused by wood processing, waste timber, straw and other flammable biomass materials. All these materials can be utilized to produce wood pellets. Pellets are suitable for civil use, like heating and cooking. They can also be used in industry, like burning boilers, hand fired furnaces, stokerfeed boilers, reciprocating furnaces, furnaces in fluid bed, circulating fluidized bed, etc. Wood pellets production line can not only replace coals but also reduce the environmental destruction result from burning straw by local peasants.

Advantages

• Biomass fuels relieve the pressure of fuel shortage in southern cities
• The ash content of biomass pellets is greatly decreased by dust removal.
• Many materials are collocated reasonably, so produced biomass fuels have high combustion efficiency.
• The raw materials of wood pellets production line have rich resources. Its final products have excellent quality with low production cost.

Production Process of Wood Pellets Production Line

• Drum chippers are used to cut brush wood for chips.
• Chips after being coarse shredding are transported to three rotors hammer flakers by conveyors and are shredded to qualified sizes with other materials. Impurities and unqualified materials are removed and distinguished by Disc Screens.

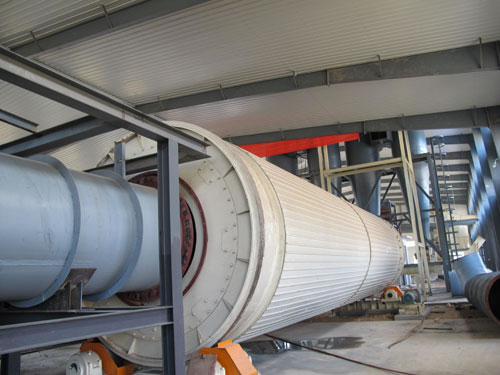

• Drying. Materials are conveyed to the drying roller by using fans for drying. After drying, the moisture content of the materials is about 12%. Materials are needed to eliminate dust for the second time so that they can reach the indicators of national dust concentration.
• Pelleting. Dried materials for wood pellets production line are transported to the stirrer for proper moisture and steam. Then, materials are conveyed to the pellet mills. By high temperature extrusion, the materials come out of circular mould in the form of pellets. After being cooled and screened, pellets in qualified sizes fall into conveyers while unqualified pellets need to be pelletized.
• Packing. Pellets passing screening are conveyed to packing machines for final packaging by belt conveyors.

Technical Parameters of Wood Pellets Production Line

China Pellets Production Equipment
The annual capacity of Jiangxi biomass pellet production is 50,000t. wood pellets production line involves drum chippers; three rotors hammer flakers, Disc Screens, hot-blast furnaces, dryers, conveyors, silos, dust removal equipment, pellet mills, coolers, screeners and packing machines.

Panda Pellet Company is specialized in manufacturing complete wood pellet line. It has cooperated with top European manufactures for over 30 years in the fields of wood processing, shaving board, particle board and MDF and wood pellet line. It brings us with the vigor of quality and technology. Besides Jiangxi wood pellets production line, it also builds other pellets production lines in Hebei, Tianjin, Guangdong, Jiangsu, etc.
